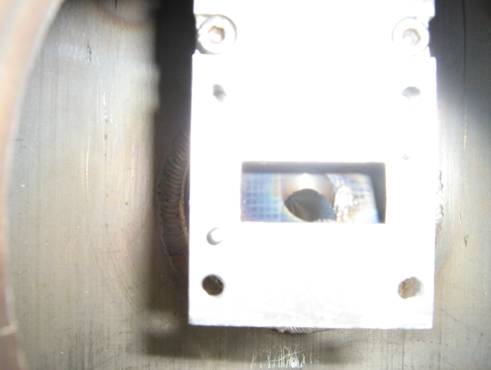

March 2005 – Damage to the grid reflector (left side) caused by e- beam interception:

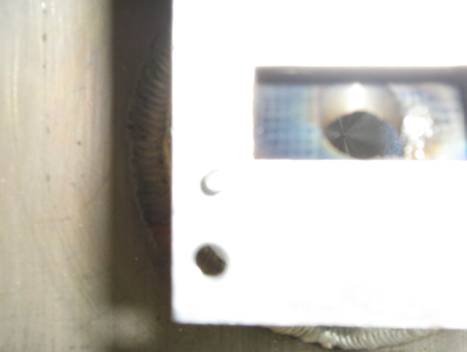

March 2005 – Damage to screen S2 caused by e-beam incidence

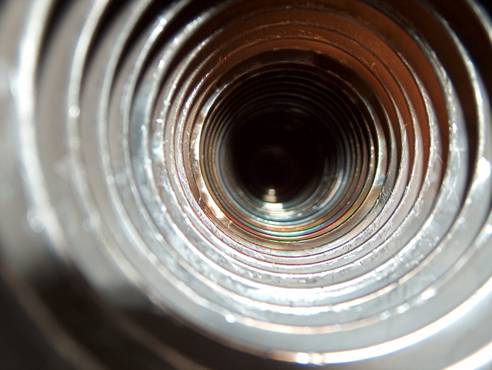

March 2005 – Scratches and material deposits on the deceleration tube. The scratches were caused by motion of the collector tube.

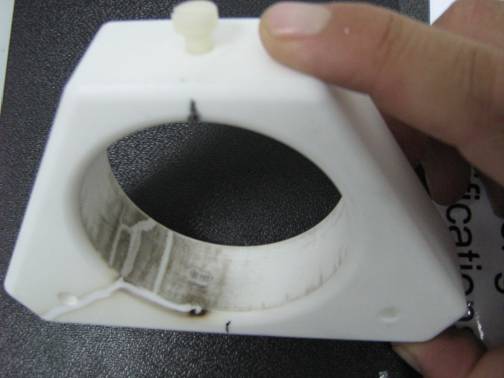

The material deposits were caused by voltage breakdown along the Teflon insulator which supports the collector tube. The tube was cleaned with Alcohol.

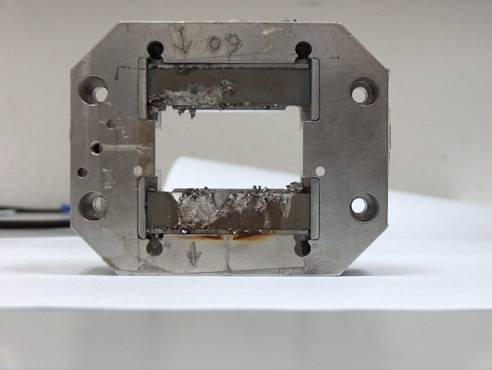

Macrh 2005 – Damage to the Wiggler magnets (at its entrance) by interception of part of the e-beam

March 2005 - Damage to the Resonator

Front splitter

Front grid mirror

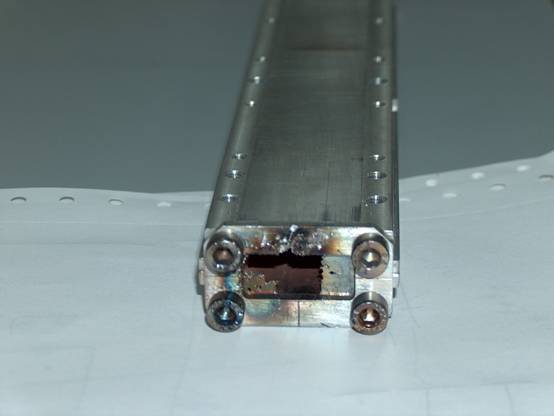

Waveguide - front

Waveguide – front

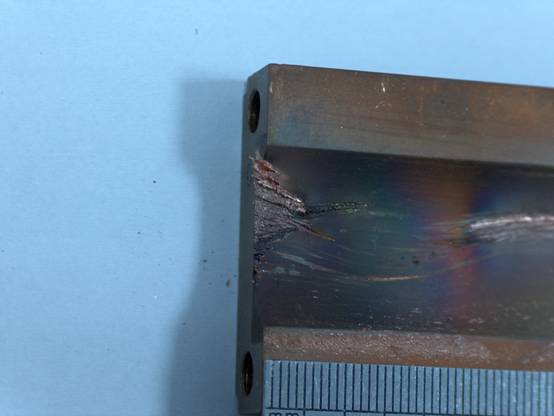

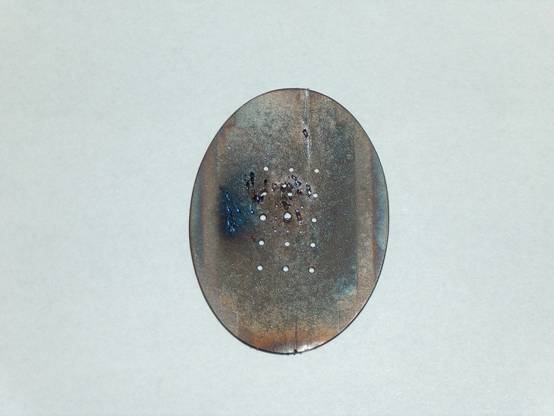

May 2007 - Damage to the 45⁰ mirror (in the resonator) caused by e-beam interception

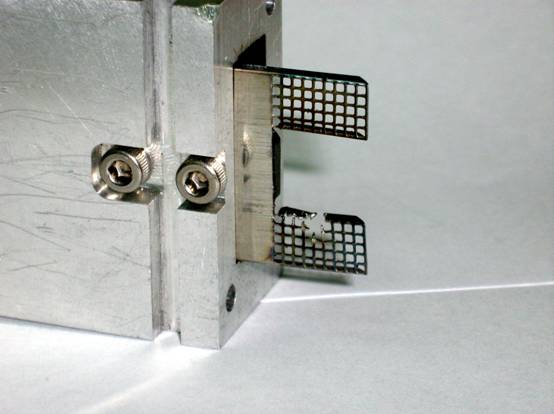

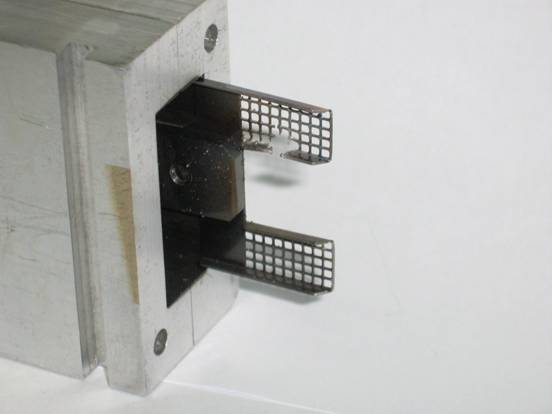

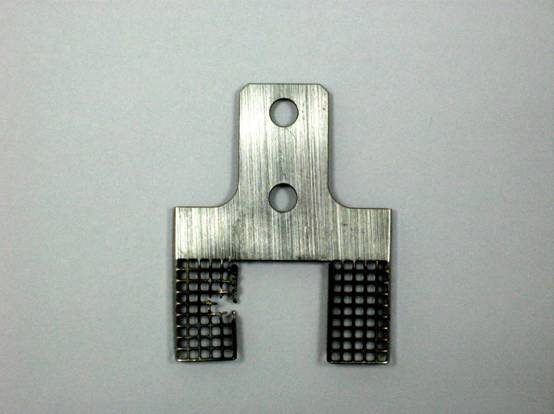

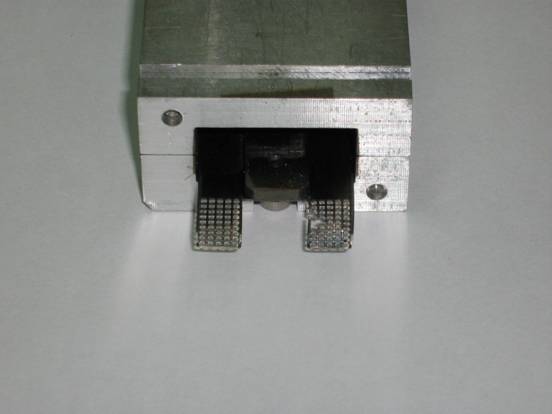

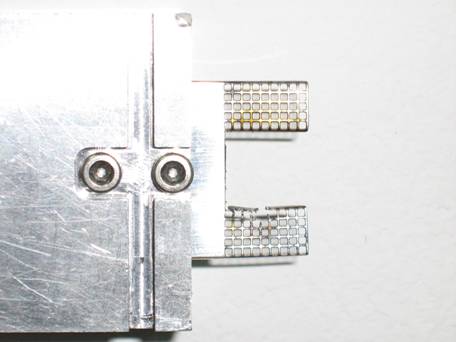

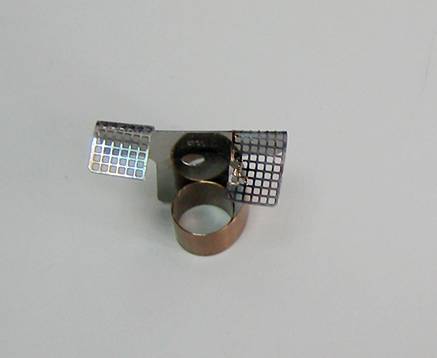

May 2007 - Damage to the grids caused by e-beam interception

May 2007 - Damage to the collector caused by high voltage breakdown
