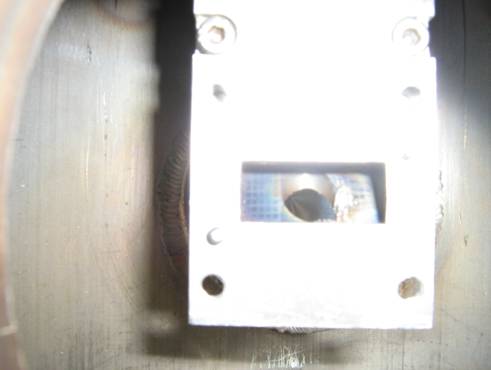

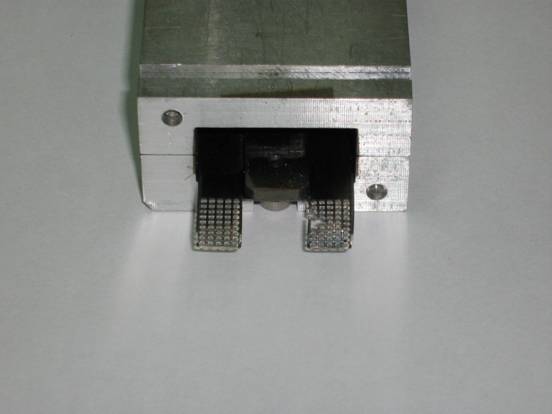

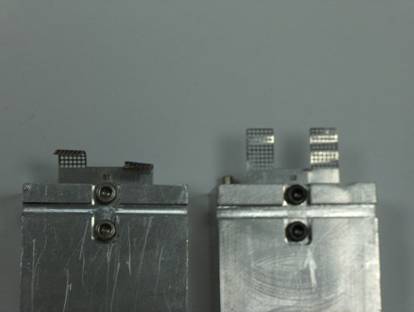

March 2005 – Damage to the grid reflector (left side) caused by e- beam interception:

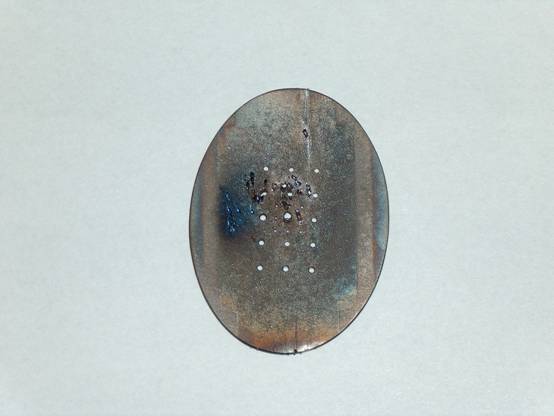

  March 2005 – Damage to screen S2  caused by e-beam incidence

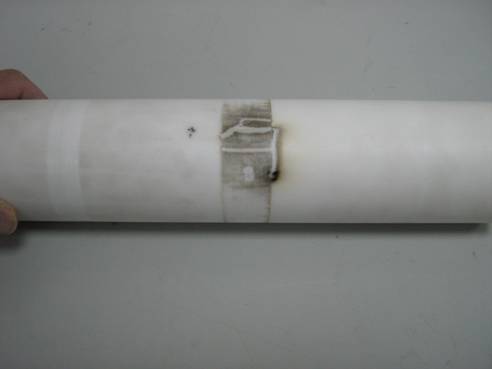

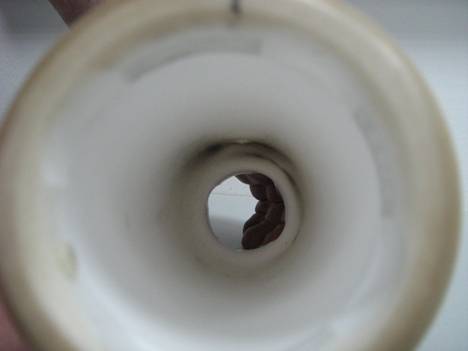

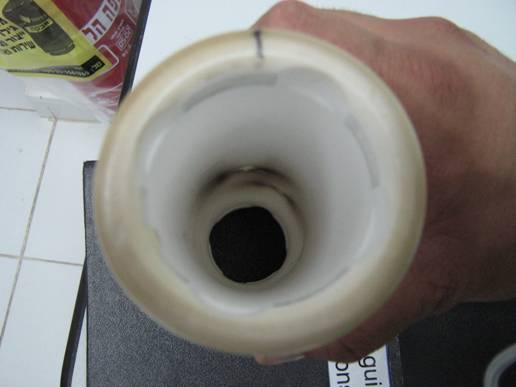

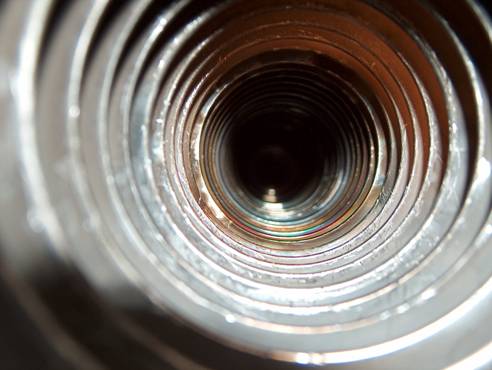

March 2005 – Scratches and material deposits on the deceleration tube. The scratches were caused by motion of the collector tube.

The material deposits were caused by voltage breakdown along the Teflon insulator which supports the collector tube.   The tube was cleaned with Alcohol.

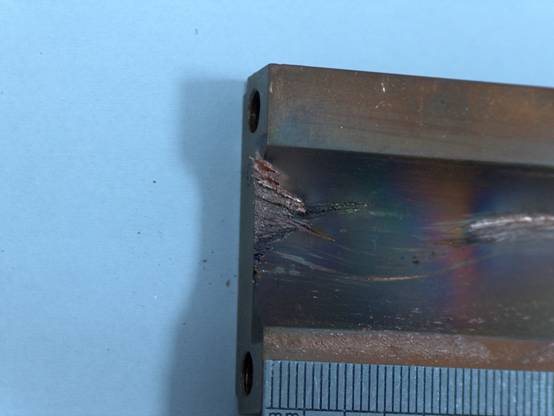

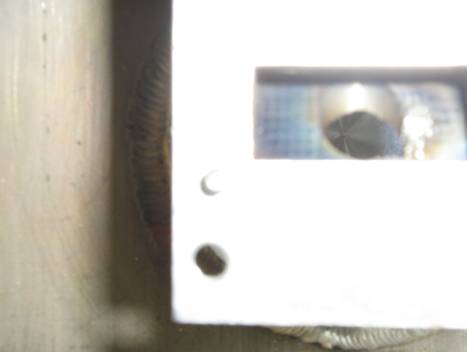

Macrh 2005 – Damage to the Wiggler magnets (at its entrance) by interception of part of the e-beam

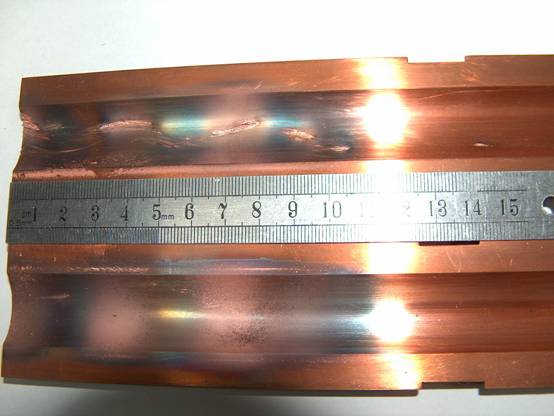

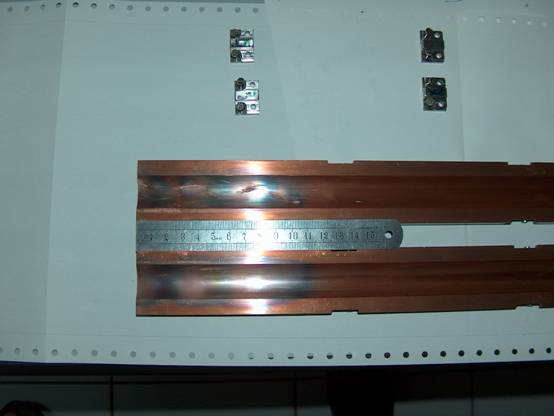

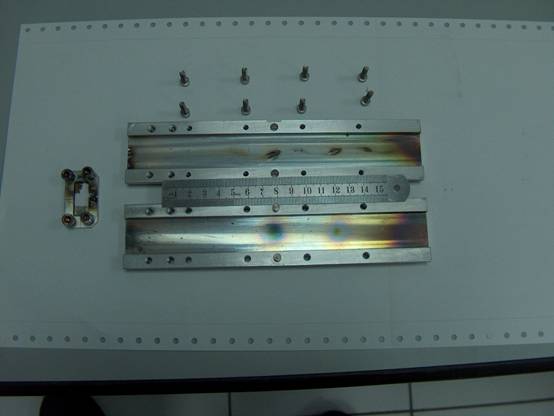

 March 2005 - Damage to the Resonator

Front Splitter, Front Grid Mirror

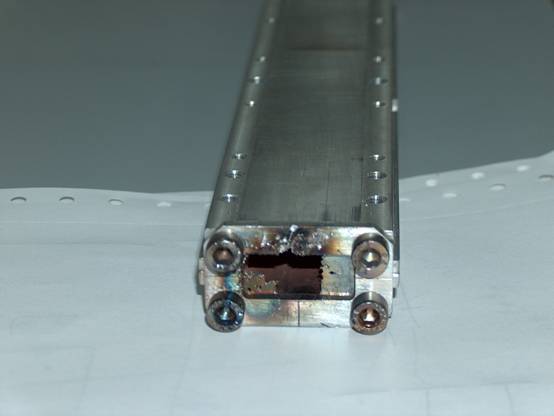

Waveguide front

May 2007 - Damage to the 45⁰ mirror (in the resonator) caused  by e-beam interception

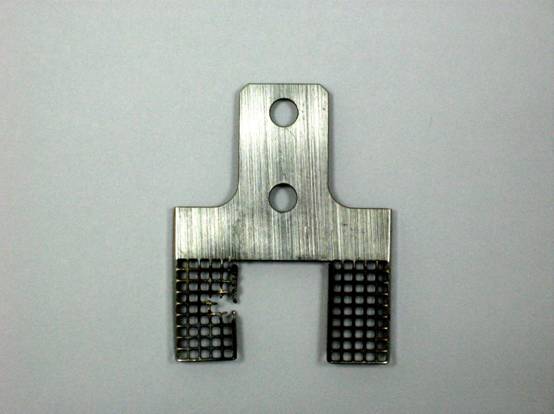

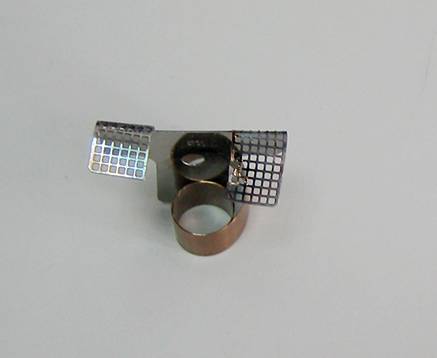

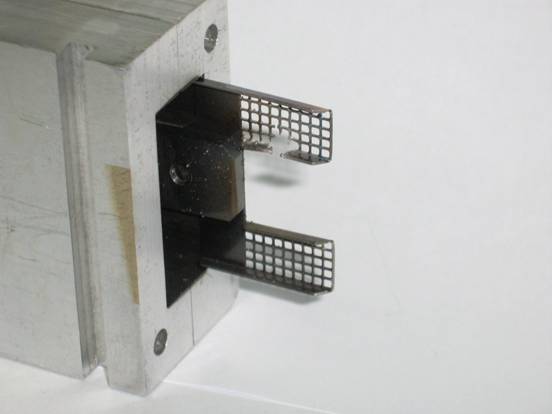

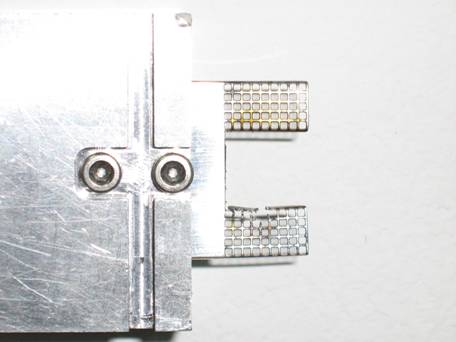

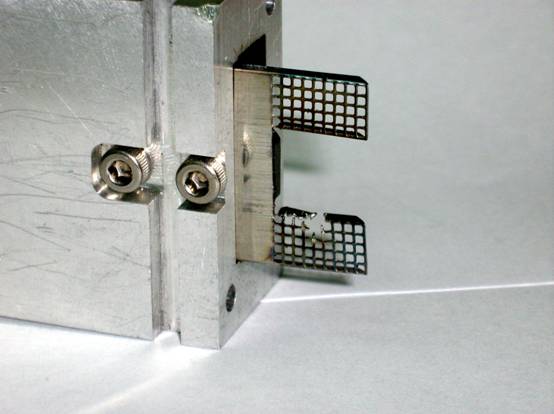

May 2007 - Damage to the grids caused by e-beam interception

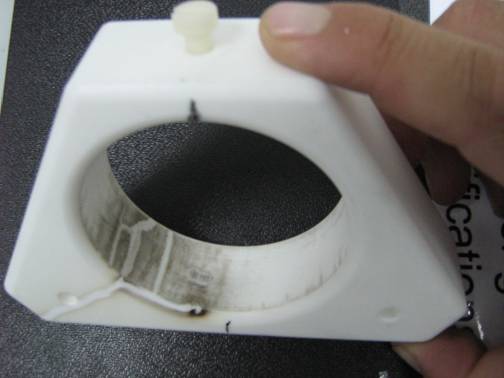

 May 2007  - Damage to the collector caused by high voltage breakdown
