Instabilities in stratified mixing layers

Gelfgat & Kit, JFM, 2006, vol. 552, pp. 189-227

STABILITY DIAGRAMS FOR VISCOUS STRATIFIED MIXING LAYER

Remainder: a=1+b, w=-b₁/2l

Stability diagrams for temporal instability

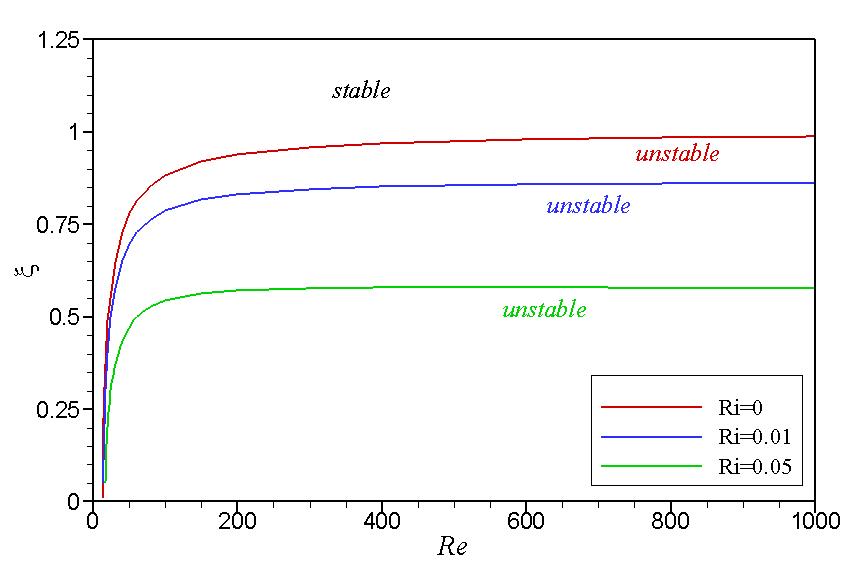

Stability diagram for small Richardson numbers (Kelvin-Helmholz instability)

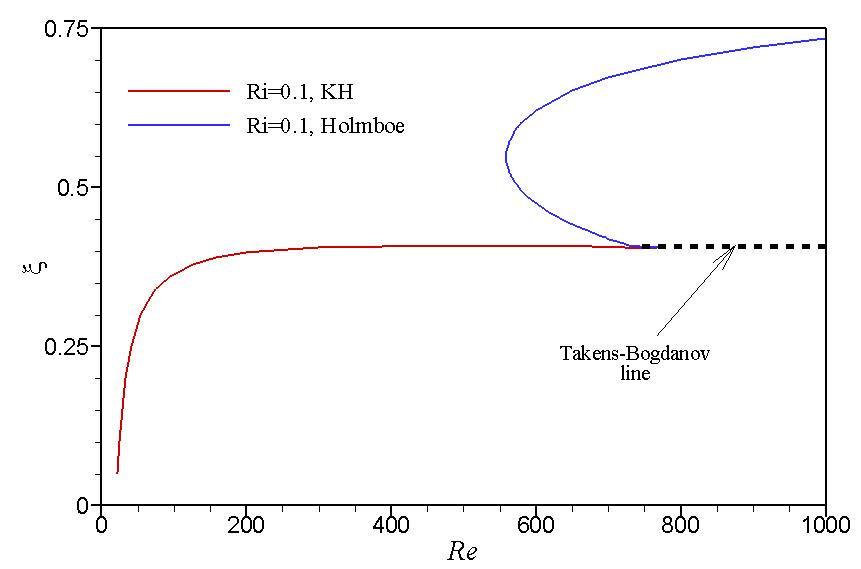

Stability diagram for Ri=0.1 (Kelvin-Helmholz & Holmboe instabilities)

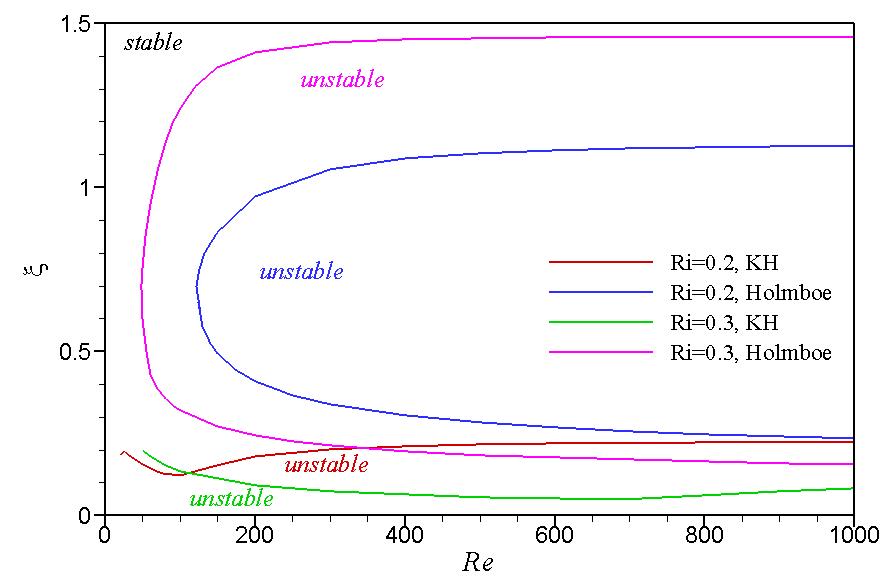

Stability diagram for Ri=0.2 and 0.3 (Kelvin-Helmholz & Holmboe instabilities)

Stability diagram for Ri=0.4 and 0.5 (Holmboe instability)

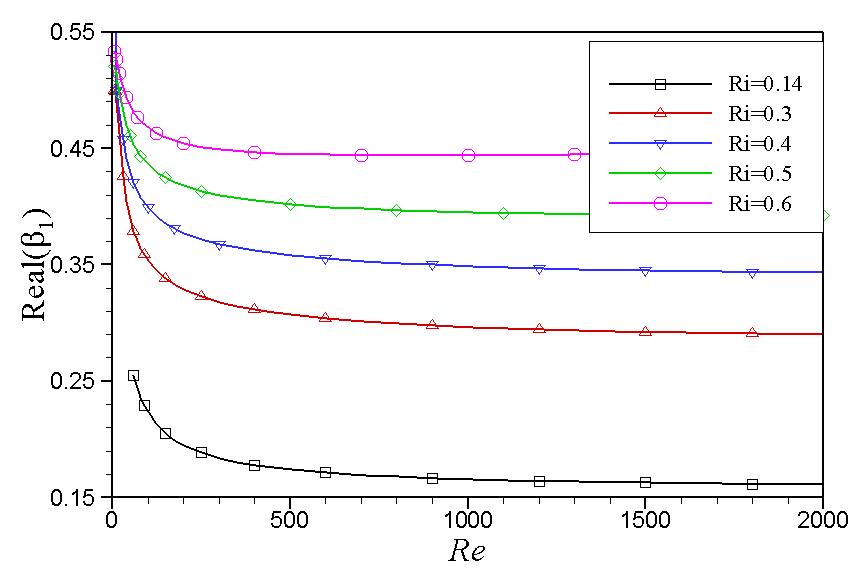

Real(b₁) vs. Reynolds number for temporal Holmboe neutral curves

Stability diagrams for spatial instability

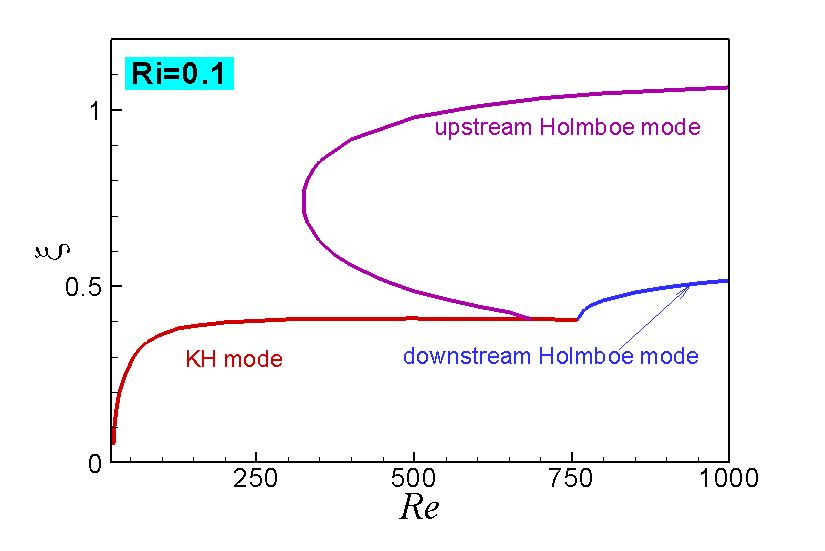

Stability diagram for Ri=0.1 (Kelvin-Helmholz & Holmboe instabilities)

Stability diagram for Ri=0.2 (Kelvin-Helmholz & Holmboe instabilities)

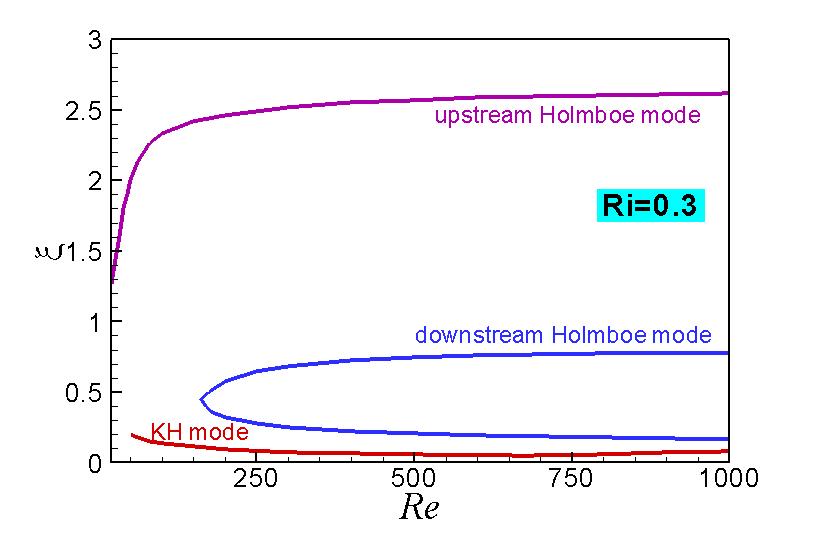

Stability diagram for Ri=0.3 (Kelvin-Helmholz & Holmboe instabilities)

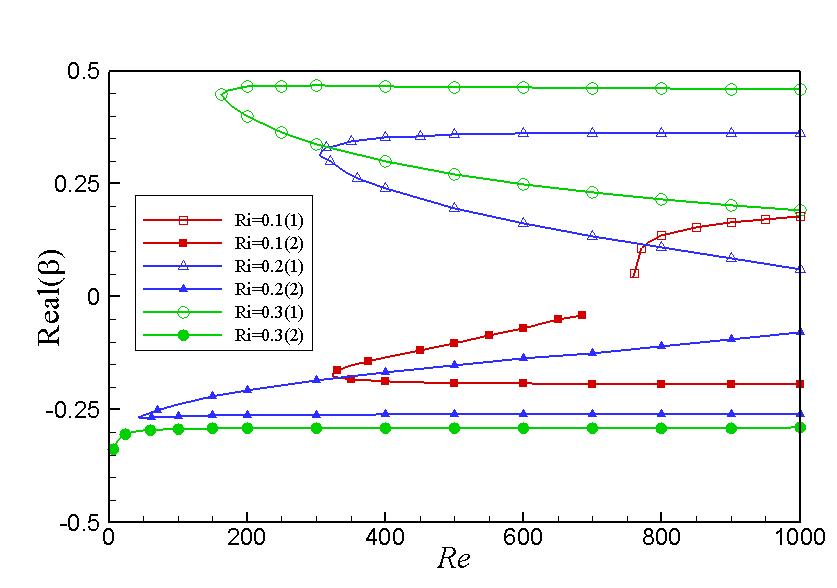

Real(b) vs. Reynolds number for spatial Holmboe neutral curves
