Rectangular cavity with partially heated sidewalls

Motivation:

Experiment of Selver, Kamotani & Ostrach, J. Heat Transfer, 1998, vol. 120, pp. 108-114





Published in: JFM, 2003, vol.492, pp. 63-89


Governing parameters:









Examples of symmetric and non-symmetric flow patterns




































Nusselt numbers to characterize flow asymmetry







For a symmetric flow:   NuL–NuR = 0.

Bifurcation diagrams:

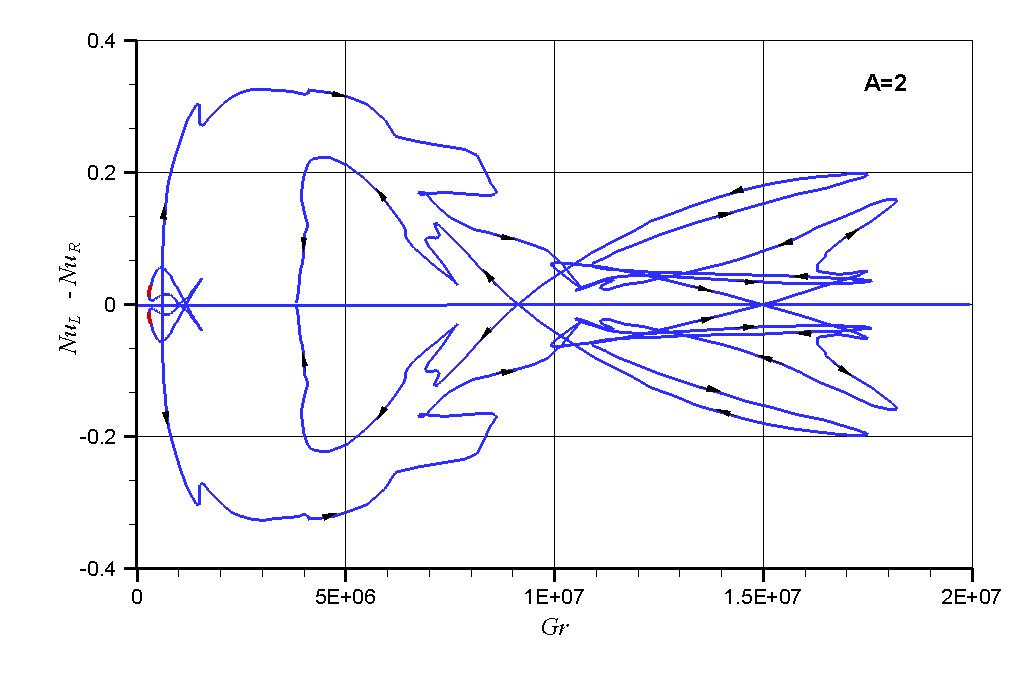

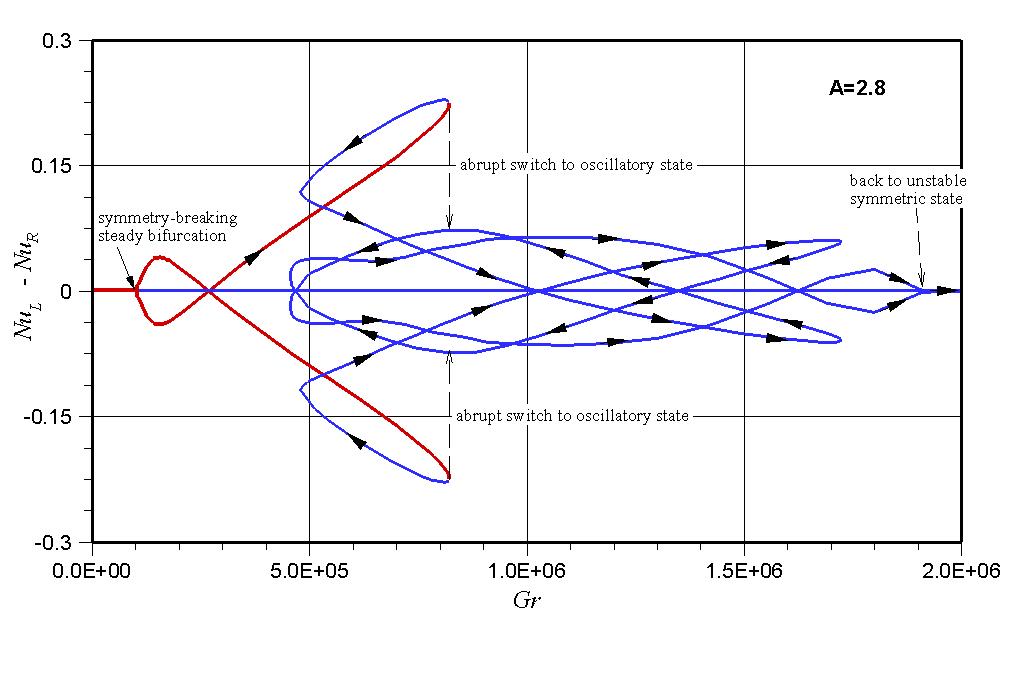

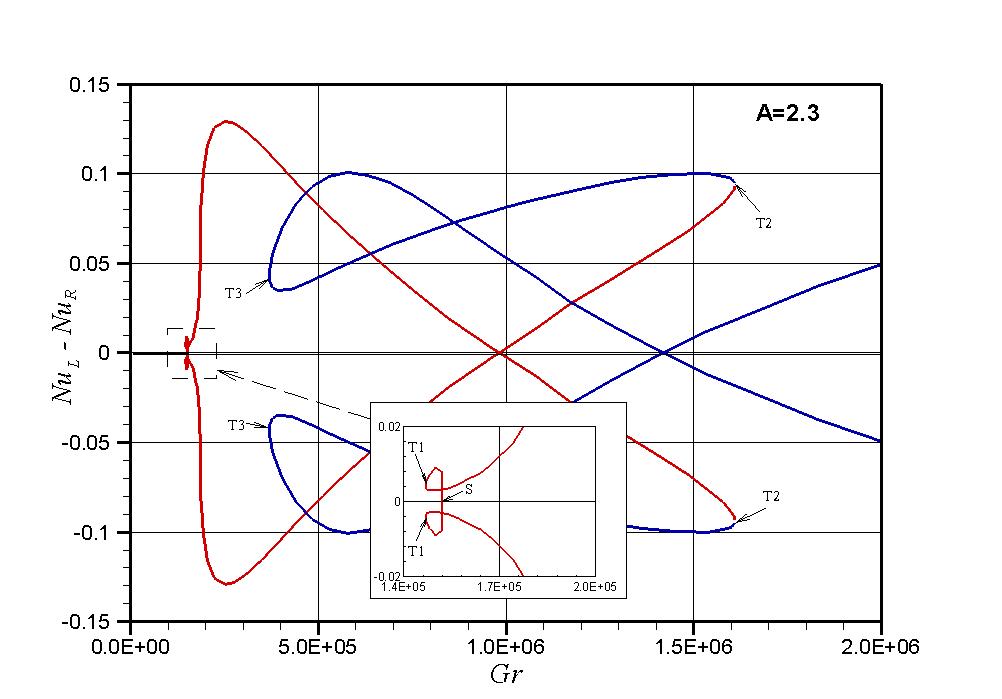

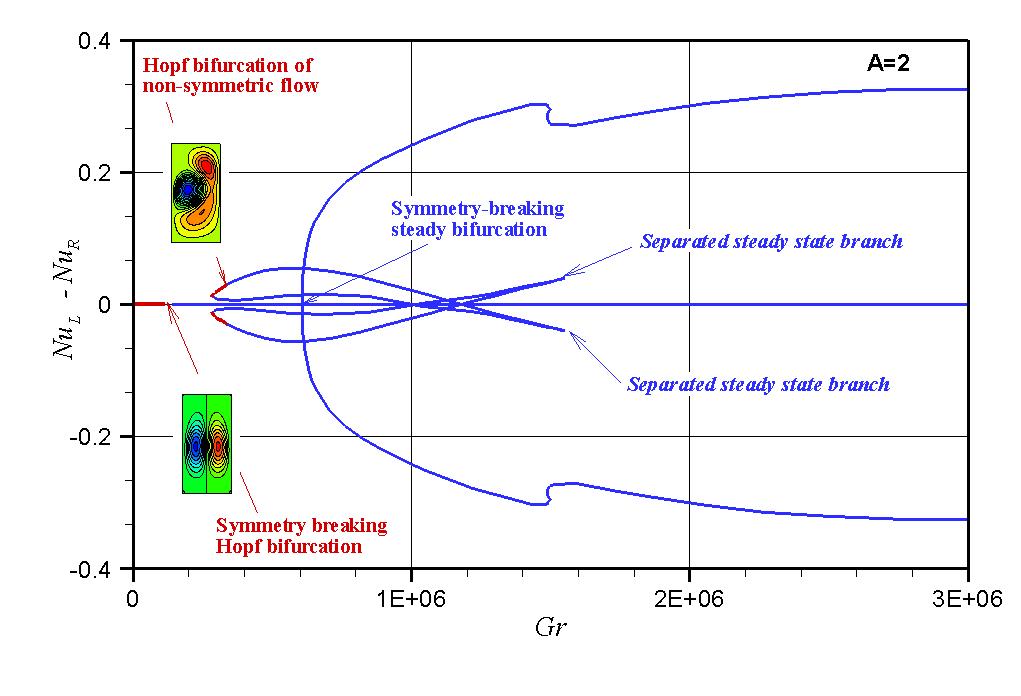

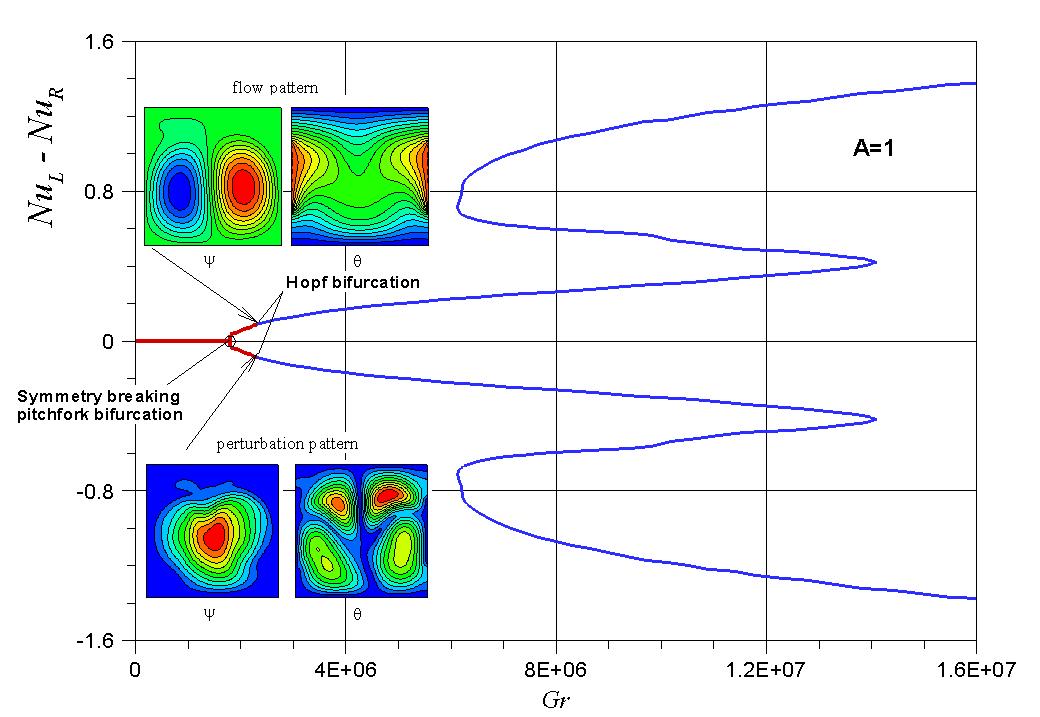

A=1     A=1.5        A=2     A=2 (extended)     A=2.3      A=2.8

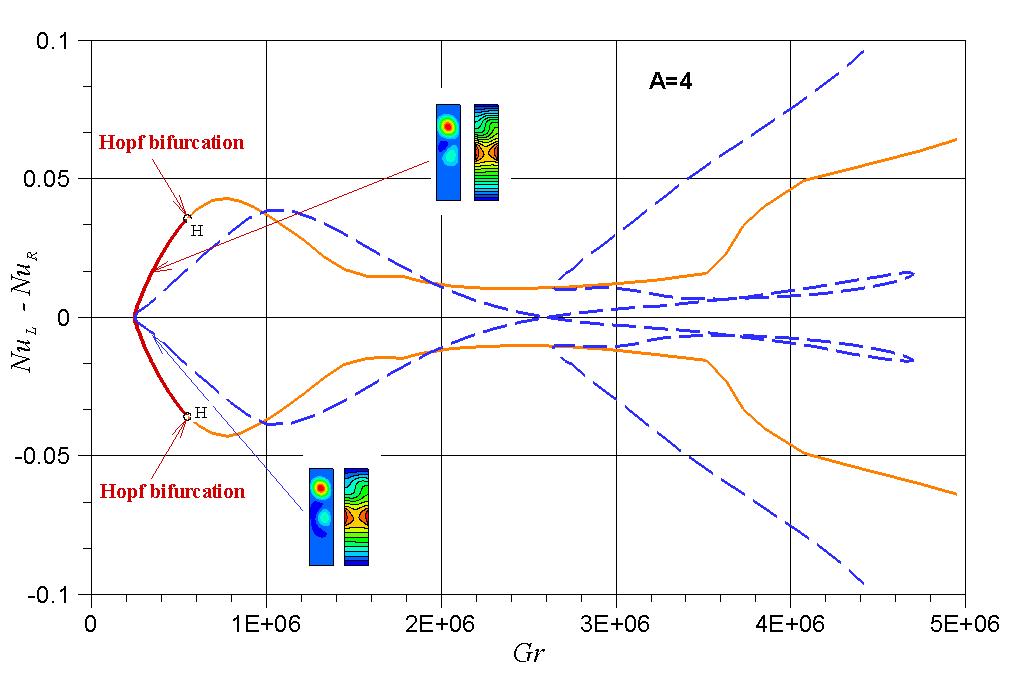

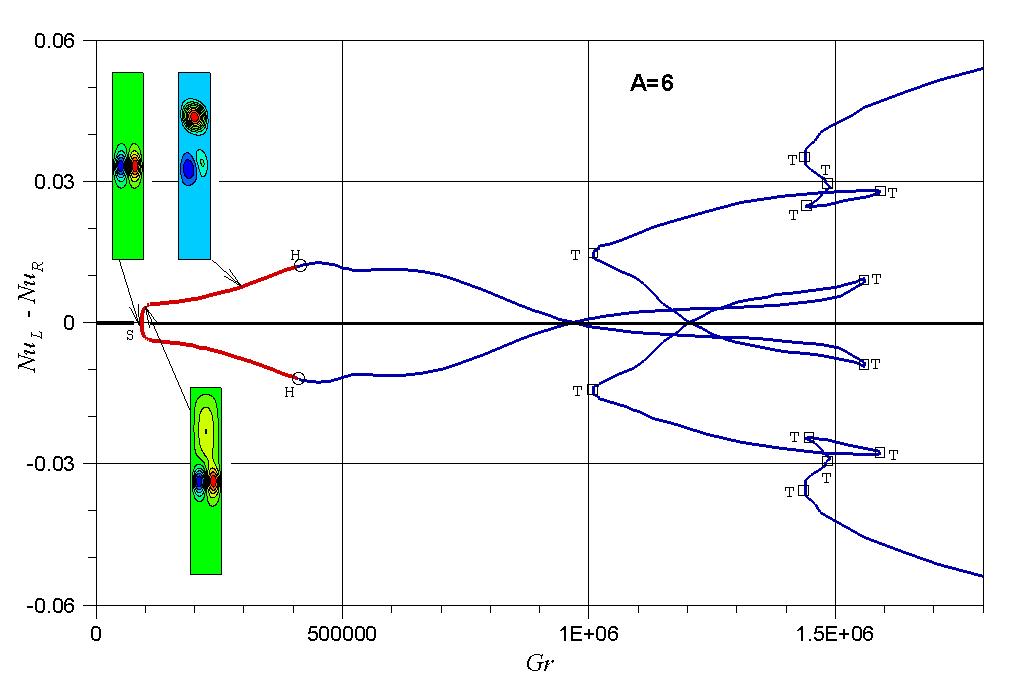

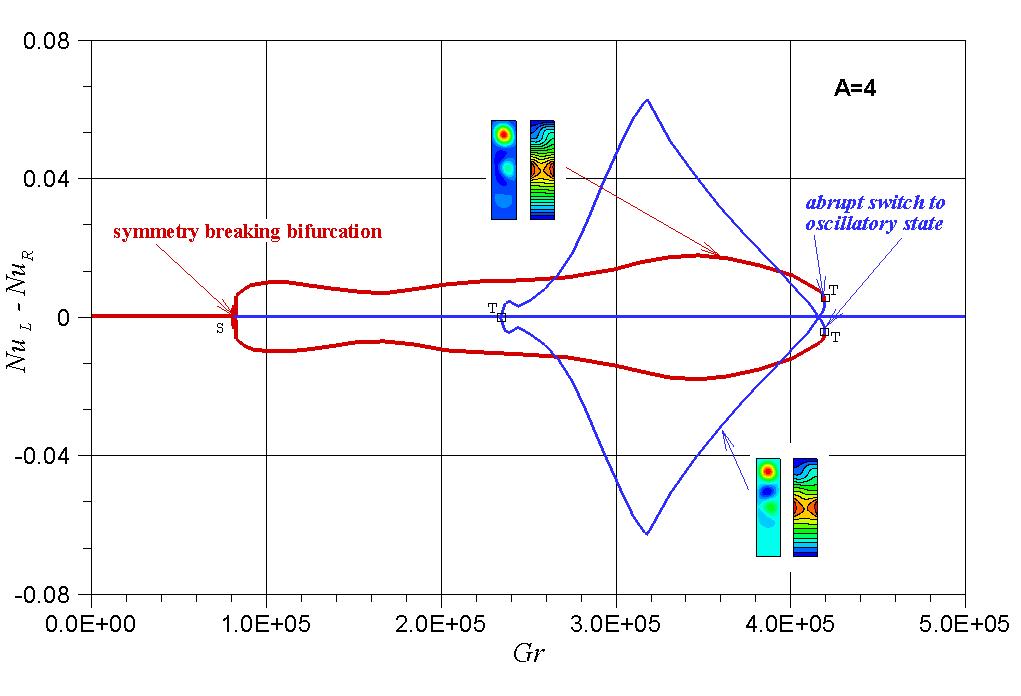

A=4 (main branch)        A=4 (two additional branches)        A=6

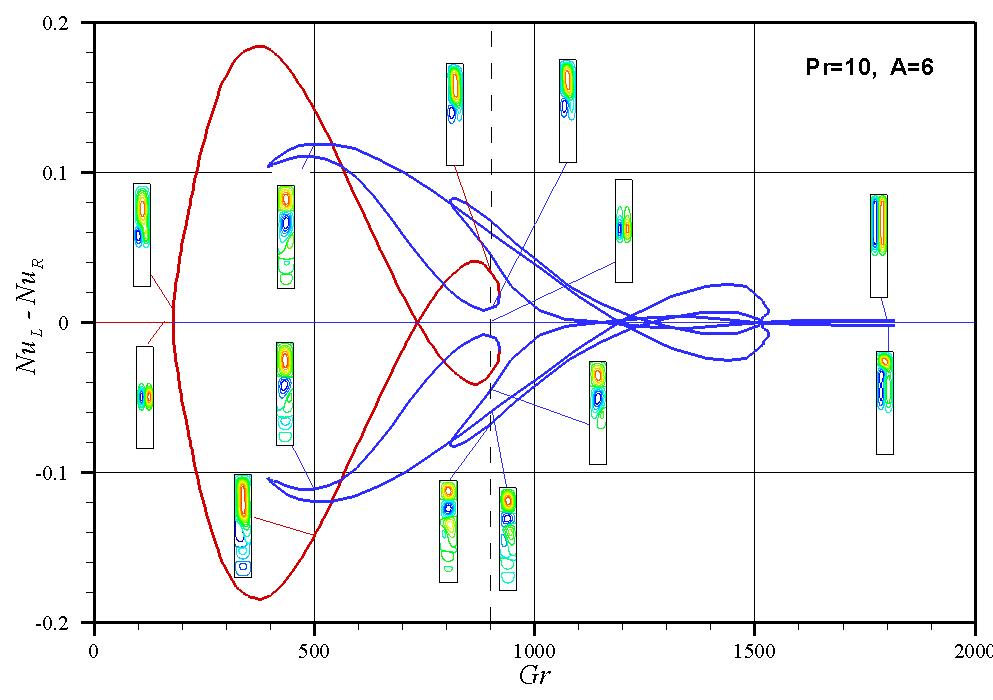

A=6  for  Pr=10

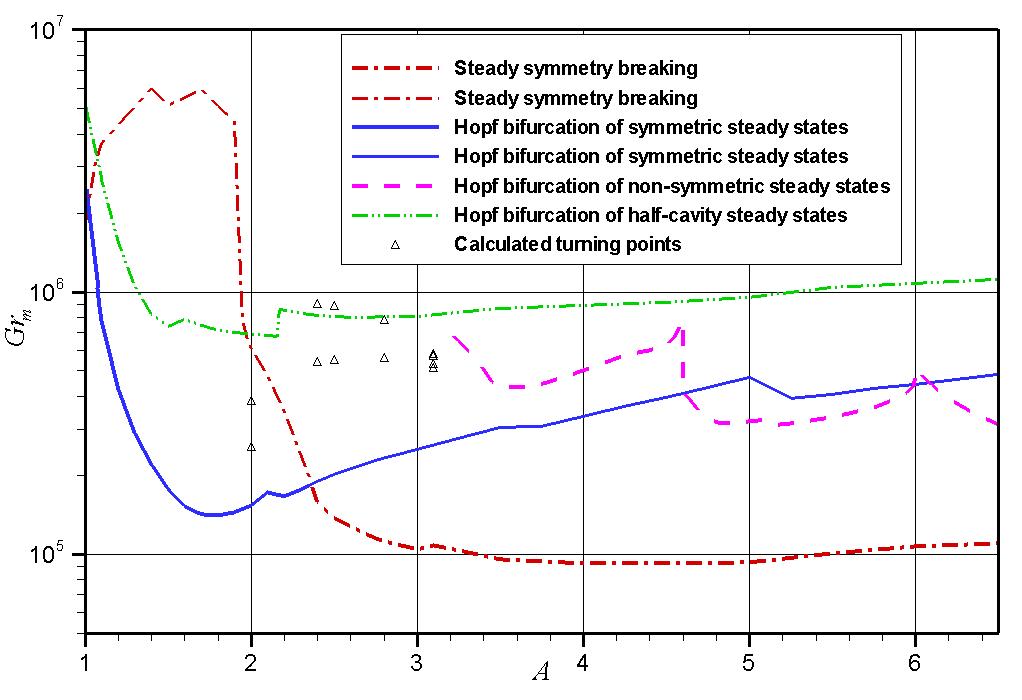

Stability diagram for Pr=0.02

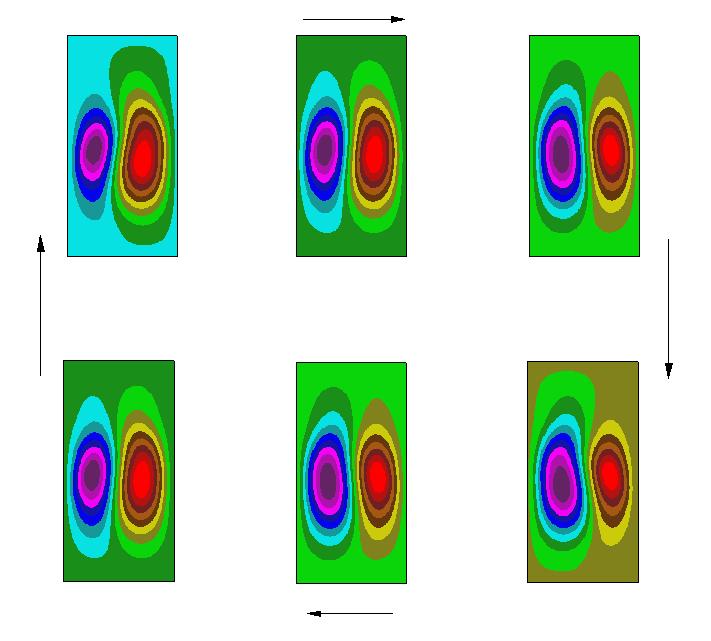

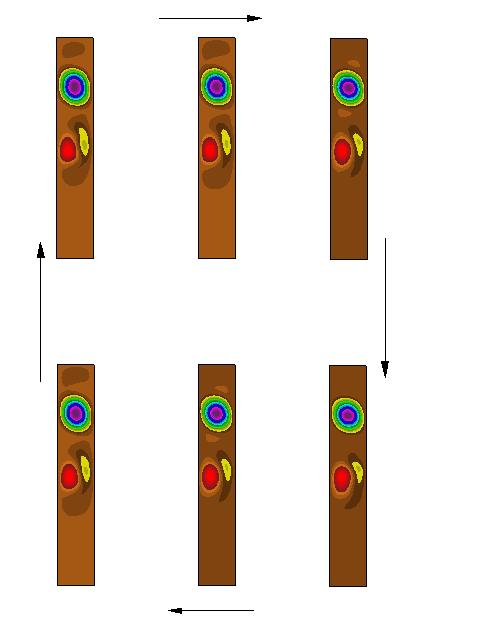

Examples of oscillatory flows:  A=2     A=6
